Products

Installing the TrailerBlade™ side skirts can mean a savings of 600 gallons of fuel per year.

This number is backed by findings verified by EPA, SAE Type J1321 Fuel Economy Testing that resulted in TrailerBlade™ achieving 7.15% in fuel savings

Our products use the perfect combination of proven materials, rugged design, and efficient manufacturing that are guaranteed to last for years. With our products’ longer life cycles, you’ll save even more money on repairs and replacement costs.

We want to make sure our products are built to your trailer’s specific configurations. That’s why we have 16 different certified side skirt configurations. Below are a few of our most popular configurations.

trailerblade fleet side profile

FUEL SAVINGS:
7.15%
in SAE J1321 Test
smartway carb logo


trailerblade hd side profile

FUEL SAVINGS:
7.15%
in SAE J1321 Test
smartway carb logo


polyblade side profile

FUEL SAVINGS/DRAG REDUCTION:
.50 Delta CdA

smartway carb logo

TrailerBlade™ FLEET

APPROVAL:CARB, EPA GHG2, SMARTWAY
LENGTH:16-22' (DEPENDING ON CONFIGURATION)
HEIGHT:32"
WEIGHT:147-187 LBS. (DEPENDING ON CONFIGURATION)
PANEL:STEEL PANEL WITH LDPE CORE WITH POLYESTER COATING
LOWER SKIRT:THERMOPLASTIC VULCANITE (TPV). SLIDES INTO CLIPS ON THE PANEL
STRUT:POLYBLADE STRUT. HYBRID WITH STEEL HEAD AND FIBER-REINFORCED NYLON CHANNEL. FIBER COMPOSITE SPRING

TrailerBlade™ HD

APPROVAL:CARB, EPA GHG2, SMARTWAY
LENGTH:16-22’ (depending on configuration)
HEIGHT:32"
WEIGHT:160-223 lbs. (depending on configuration)
PANEL:Steel Panel with LDPE Core with Silica Impregnated Polyester Coating
LOWER SKIRT:Thermoplastic Vulcanite (TPV). Rivets into Panel
STRUT:Steel with Dual Coil Springs

PolyBlade™

APPROVAL:CARB, EPA GHG2, SMARTWAY
LENGTH:18'
HEIGHT:32"
WEIGHT:128 Lbs
PANEL:Continuous Fiber-Reinforced Polypropylene Composite
STRUT:PolyBlade Strut. Hybrid with Steel Head and Fiber-Reinforced Nylon Channel. Fiber Composite Spring

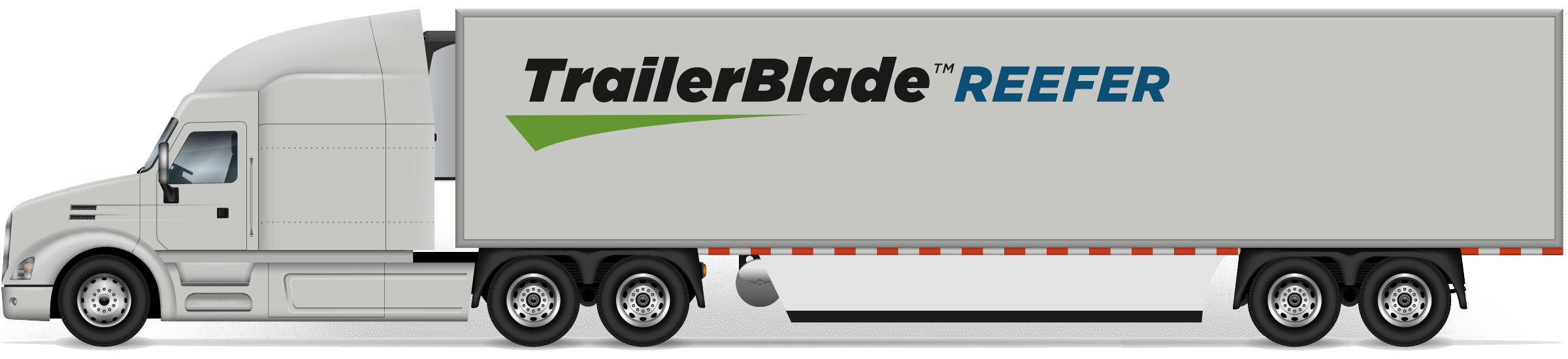

Custom fit to top brand reefer trailers.

Learn More
